WRE-2019 19mm广角镜头

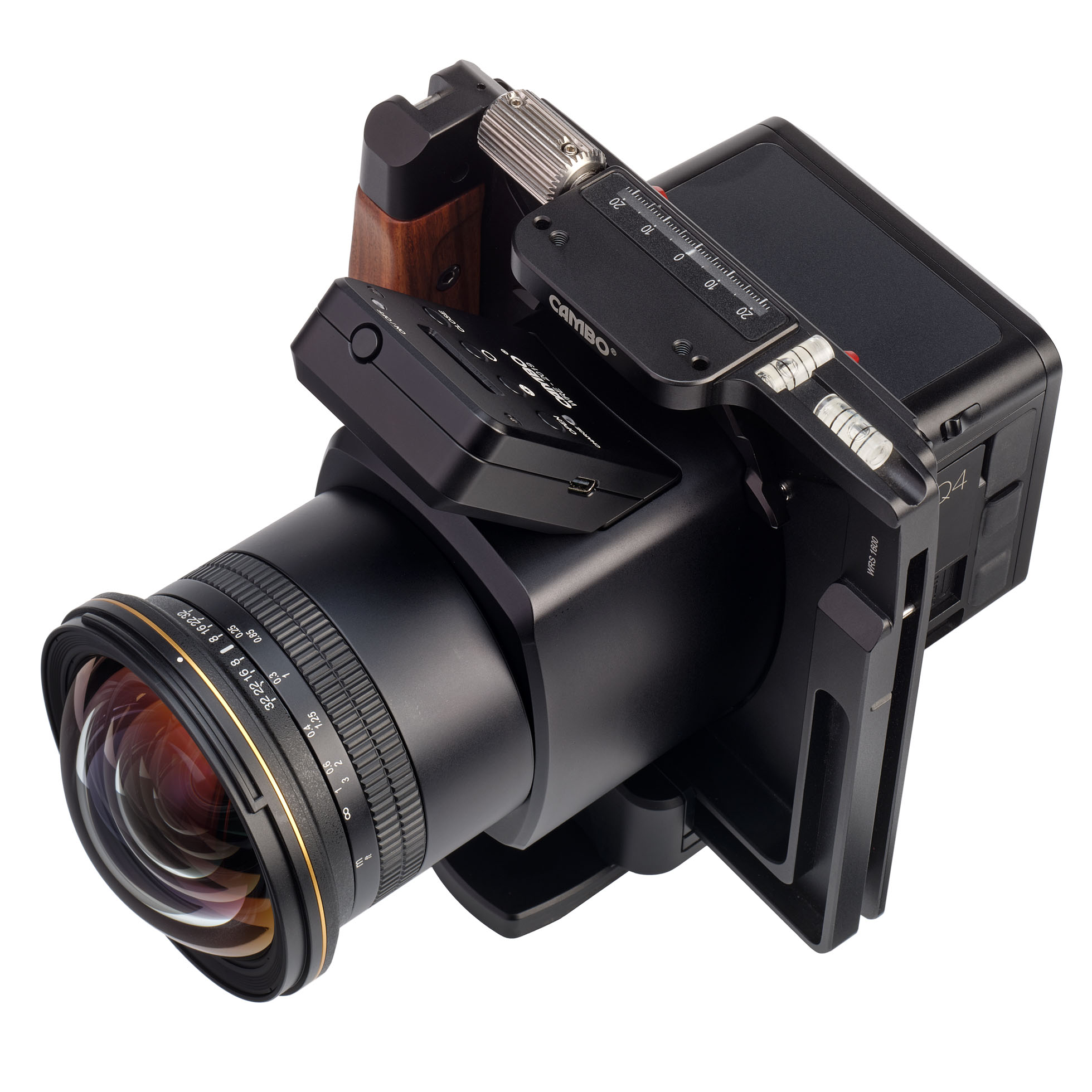

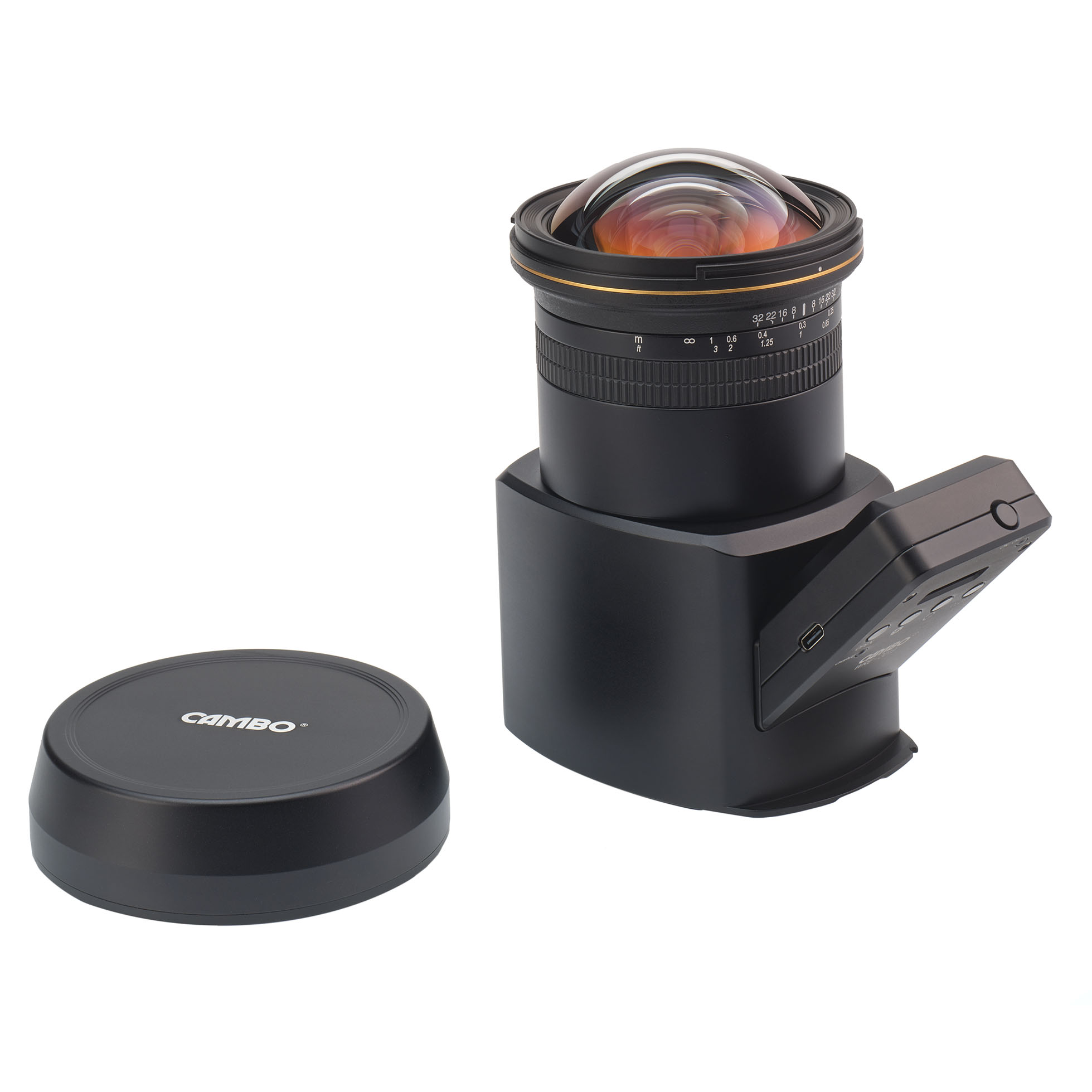

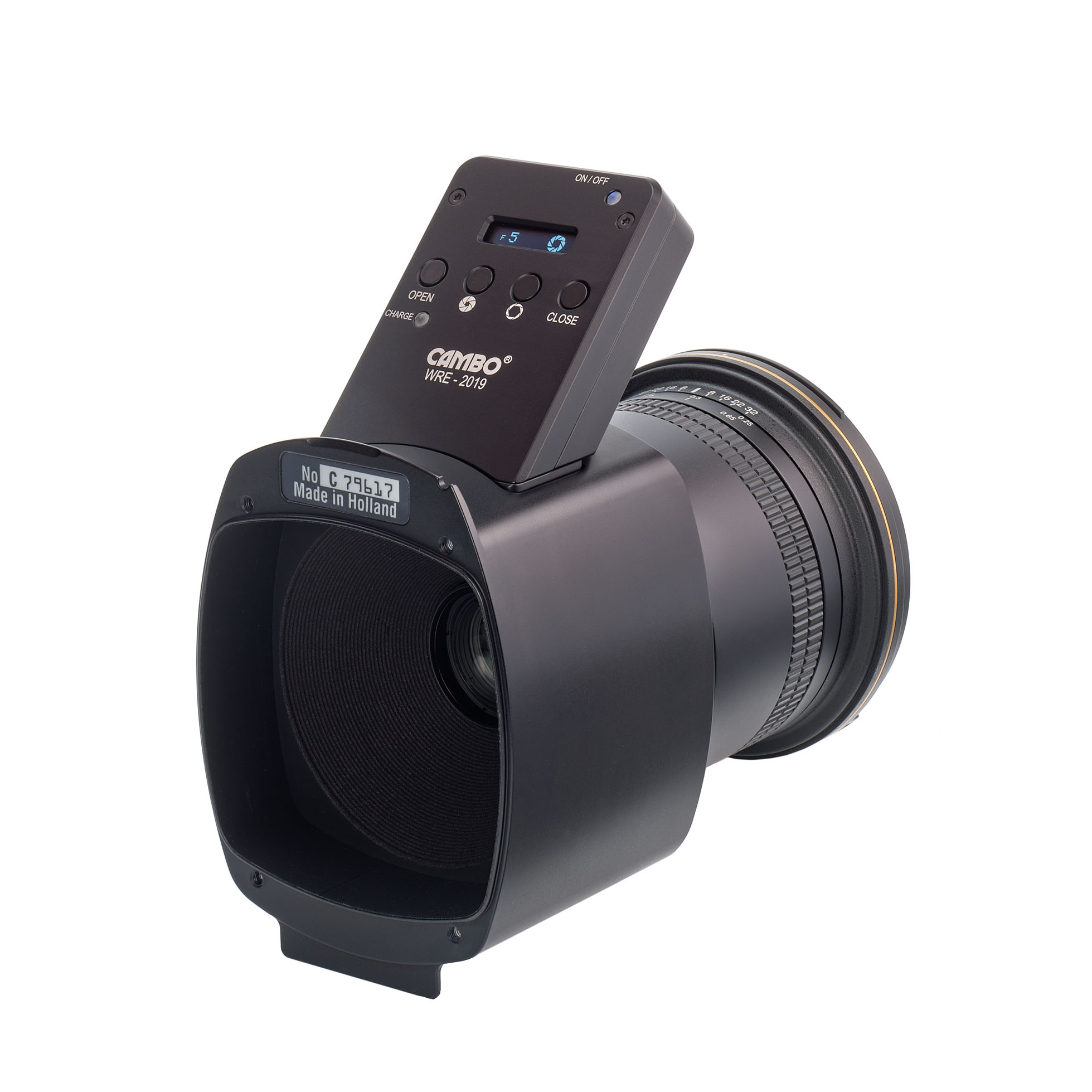

We made the optical parts from Nikon's PC-19 available for use on Cambo WRS and Phase One XT technical cameras. The lens has been rehoused and fitted with a controller for the electronical aperture. The image circle is large enough to cover the sensor of an IQ3/IQ4 back and still permits about 4mm of shift. Edge-to-edge sharpness is excellent.

Since the lens has no leaf shutter, one has to rely on the On-Sensor shutter as used in digital backs like Phase One IQ3/IQ4 and the Hasselblad CFV-II 50c.


Image circle of lens at f/8: 71mm

Optical Movements:
CCD size 33x44mm:  12/10 mm
CCD size 40x54mm:    4/3 mm


Camera Movements:
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

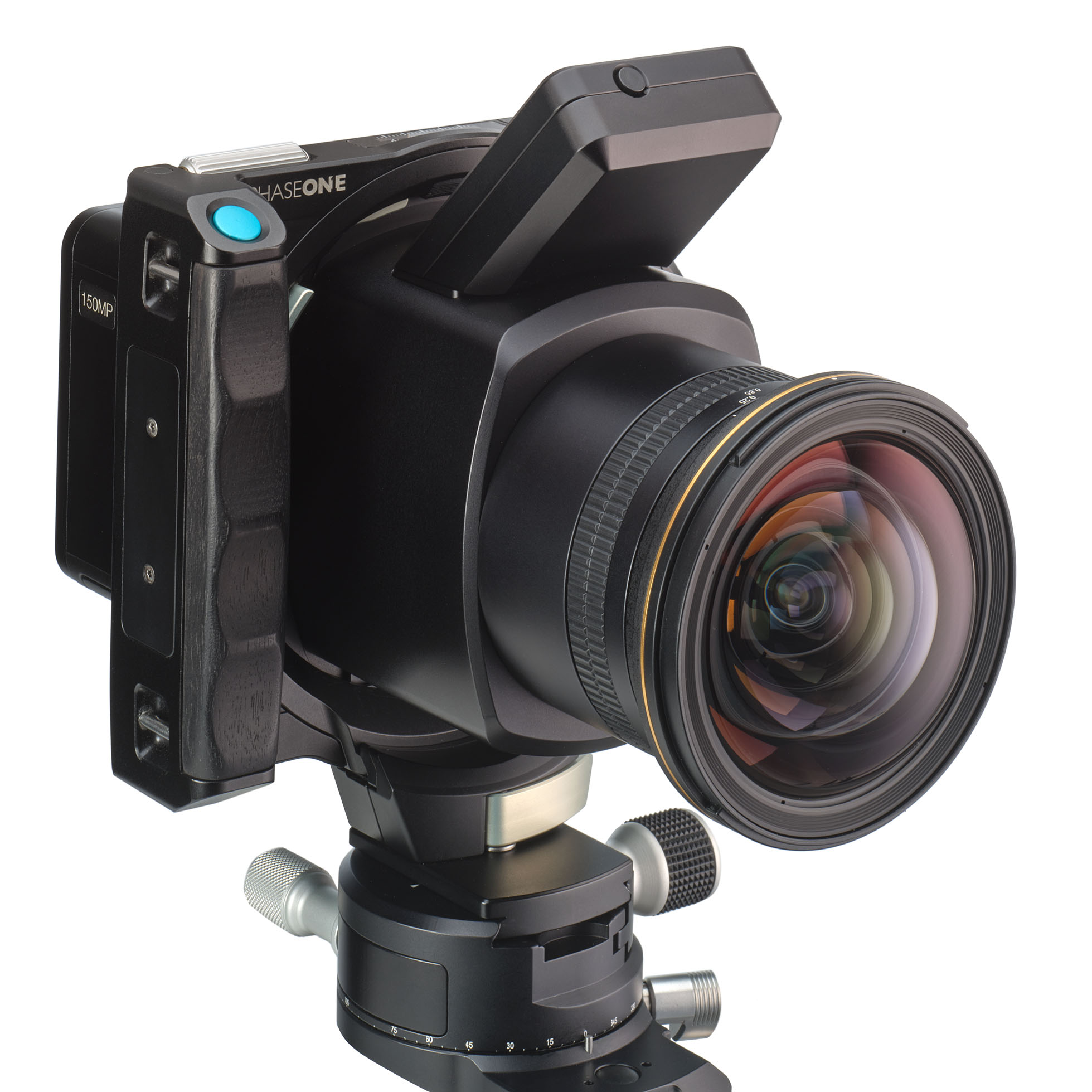

This product is compatible with the PhaseOne XT system / No data transfer

  • Focal length                      19mm

  • Aperture                            f 4.0-32

  • Image circle                      71mm

  • Construction                      17 Elements/13 Groups

  • Coating                              Nikon Nano Crystal Multi Coating

  • Weight                               1250g

  • Dimensions                         16 x 7 x 14cm
