ACTAR-20mm广角镜头

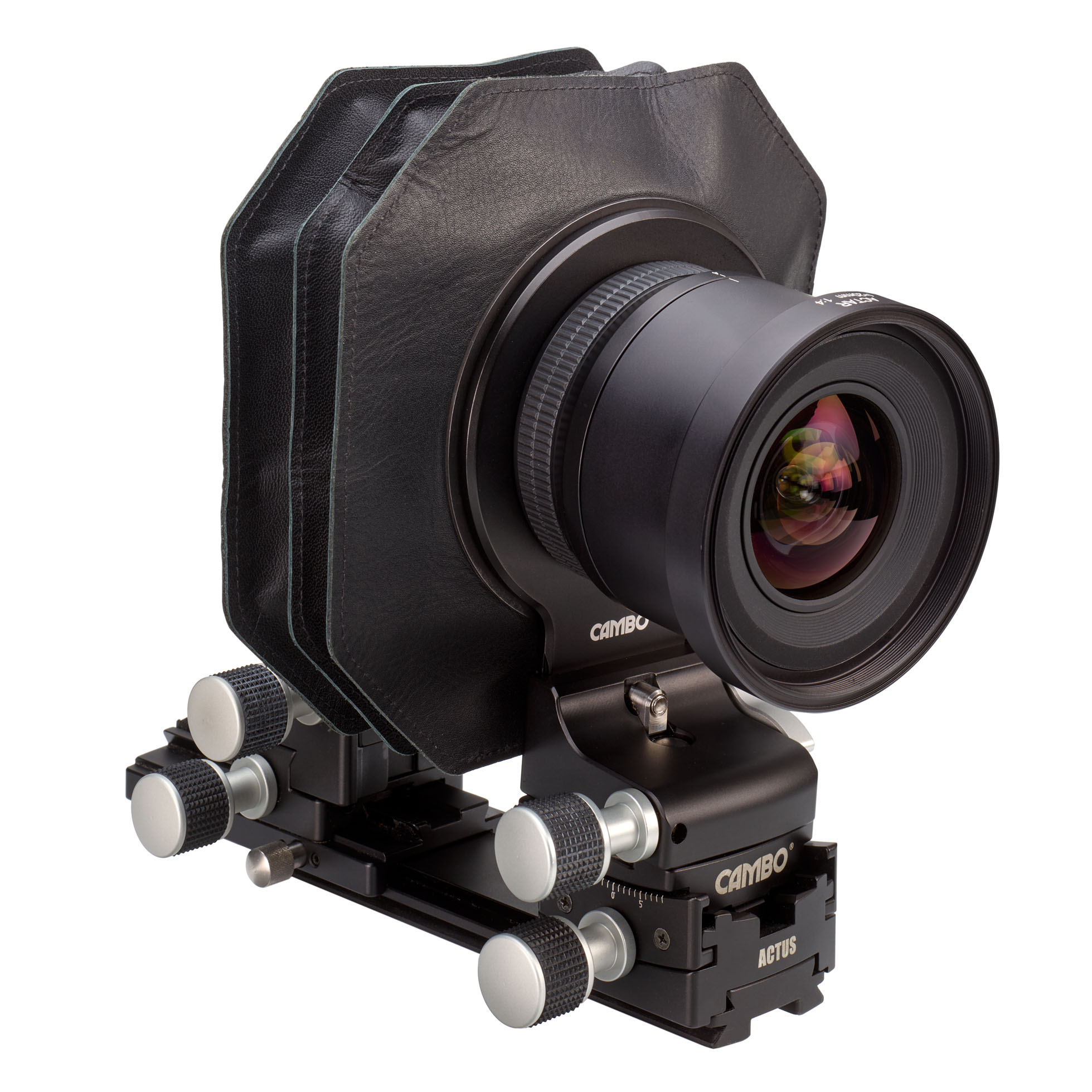

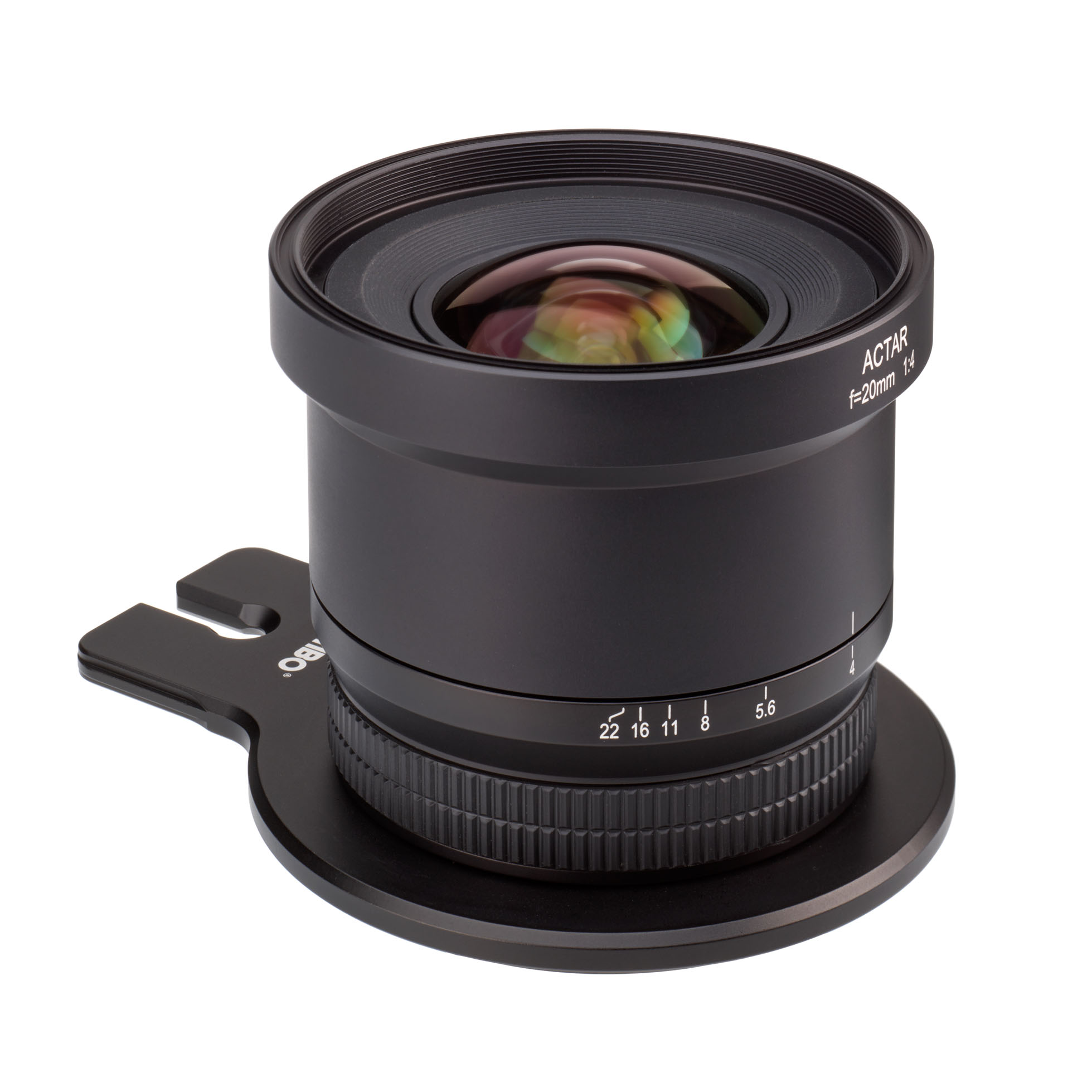

The ACTAR-20 is an Ultra Wide Angle Lens for the Cambo Actus system. It can be used with Mirrorless camera bodies or Digital Backs (On Sensor shutter only). This lens is permanently attached to an Actus lens panel and has a focal length of 20mm. This, and its relatively light weight and modest size, make it an ideal companion for interior, landscape and architectural photographers. This new Actar-20 does have a 82mm filter thread.


The ACTAR-20 is a lens with almost no geometrical distortion. As the image circle is 68mm, there is an optically allowed horizontal shift possible of 17mm each side when using a full frame (24x36) sensor in landscape mode, and 14mm in portrait mode. Use of the ACTAR-20 on the Actus with Fujifilm GFX 50/100 series is possible up to 8 mm of shift.


The optical design of this lens is a 16 element in 11 groups. The aperture range is from f/4,0 to f/22 in half stop increments. Please note that the aperture is manual and there are no electronical connections available nor needed.


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

focal length
20mm
aperture range
f 4,0 - 22  (manual)
lens construction
16 elements / 11 groups
coating
limiting flare and ghosting
front filter thread
82 mm
size L x W x H
82 x 100 x 105 (includes Lens Cover)
weight
750 gram
image circle
68mm
build for
Cambo Actus series
works in combination with Actus for
Mirrorless Camera body
available since
February 2023
