X-SHUTTER

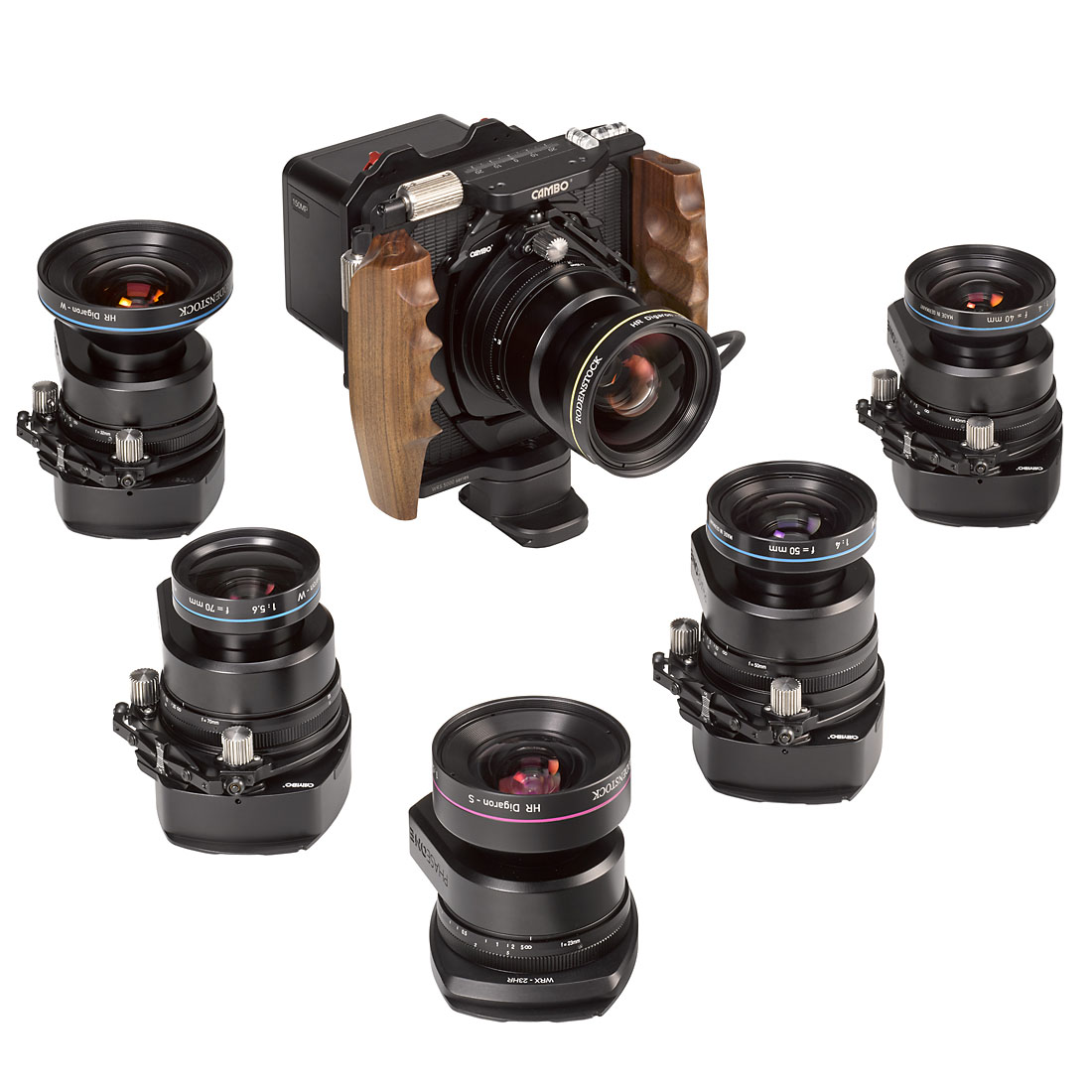

The newly introduced X-Shutter is available mounted on a range of Rodenstock lenses in combination with Cambo WRX Lens panels.


The X-Shutter is an electronic leaf shutter that can replace the traditional #0 copal shutter on several Schneider and Rodenstock lenses. The X-Shutter is only controlled by Phase One's IQ4 infinity platform.


If you have an existing lens panel with a Rodenstock or Schneider lens according to the detailed list underneath, your lens can be remounted with tis new X-Shutter.


Next to that Cambo has started since late 2020 the delivery of Cambo WRS lens panels -with or without Tilt/Swing mechanism- featured with the X-Shutter by default.


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

Lenses listed for Remount into X-Shutter are:

Rodenstock Digaron:
Schneider Apo-Digitar:
23 HR-S
47-XL
32 HR-W
60-XL

72-XL
40 HR-W
80-M
50 HR-W
90-N
60 HR-S
100-N
70 HR-W
120-N / Asph.
90 HR-SW
120-M
100 HR-S
150-N
180 HR-S
180-T

210-T


  • Aperture: controlled by IQ4 depending on lens

  • Shutter Speed: from 1/1000 s to 60 min.

  • Cable connection to IQ4

Default  cable length 50 cm
Optional cable length 80 cm
  • No power needed
