ACTAR-35 [RETROFIT]

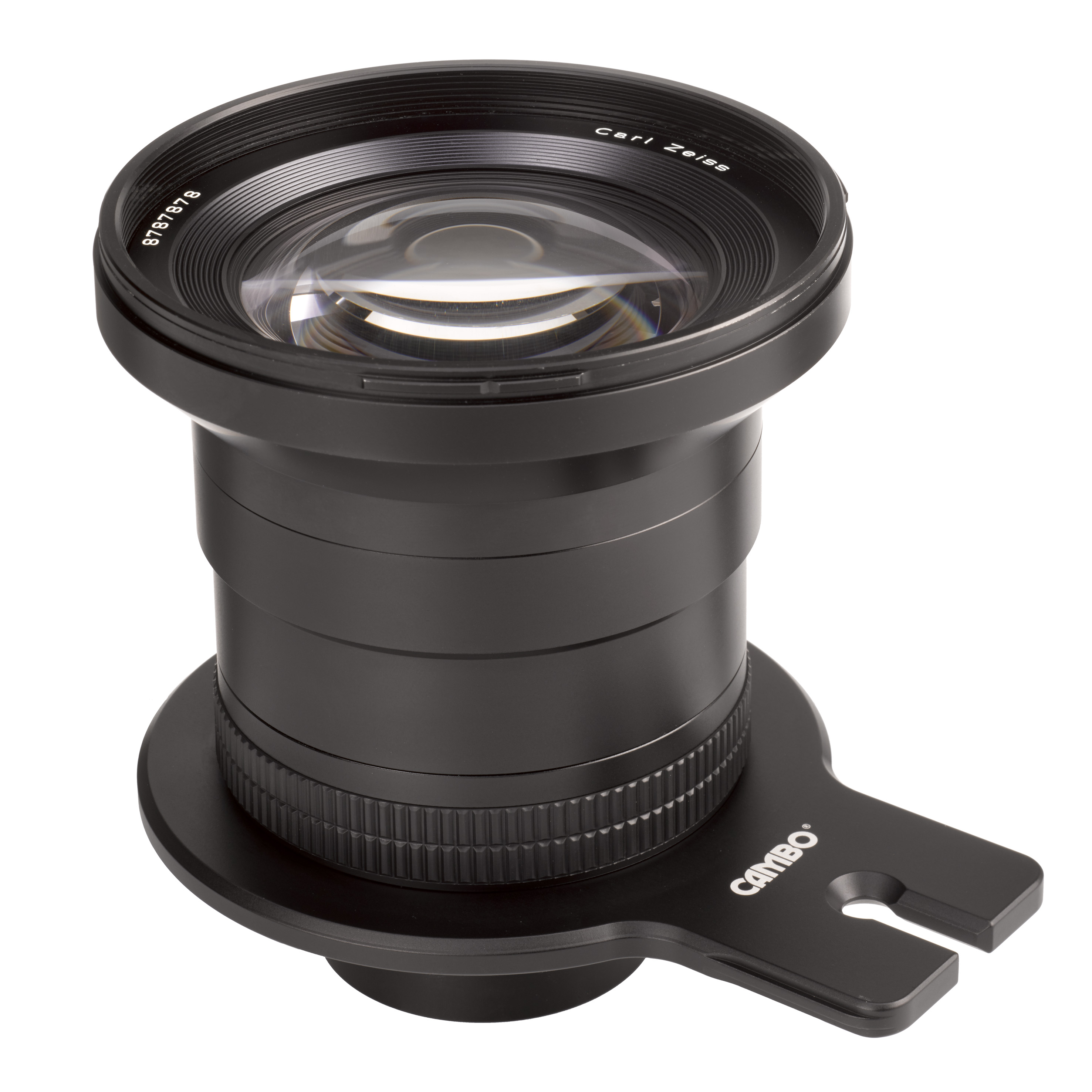

The ACTAR-35 is a rebuild lens dedicated to the Cambo Actus in combination with a dslr or mirror less camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 35mm. This makes it an ideal companion for landscape and architectural photographers.

The ACTAR-35 is a lens based on the Contax Distagon 35 for the 645 system. As the image circle is based on the 4,5x6 format , there is an optically allowed horizontal shift possible of 10mm each side when using a full frame (24x36) sensor, when using a 33x44 sensor of the 50mp MF camera bodies, the shift possibilities limit to 5mm.

The aperture range is from f/3,5 to f/32. Please note that the aperture is manual and there are no electronical connections available nor needed.

Note: This item is not available from stock. Cambo offers the service to rebuild an existing Contax 645 Distagon 35mm into an ACTAR-35. The customer has to provide the Contax lens.

购物车 ENGLISH LINK

产品详情
Product details
技术参数
Technical details
下载
Downloads
问答功能
F&Q

The original lens will be modified as follows:

the focussing movement is removed, focussing is done with the Actus camera's rear standard
the electronic aperture is replaced with a manual aperture
the lens is fixed mounted to a Cambo Actus lens plate
the optical design is not changed
the lens is rebuild in the quality as-is, in other words: no improvements are possible on the optical performance. The customer is responsible for checking the lens quality before submitting.

focal length	35mm
aperture range	f 3,5 - 32 (manual)
lens construction	16 elements / 11 groups
coating	multi coating
front filter thread	m95
size L x W x H	116 x 100 x 133 (includes Actus mount)
weight	815 gram
image circle	70mm (approximately)
build for	Cambo Actus (non DB)
works in combination with Actus for	Canon, Nikon, Sony A7, Fuji GFX, Fuji X, Panasonic, Leica M, Olympus OMD
available since	December 2017
