AC-795 富士GFX-100机身接环

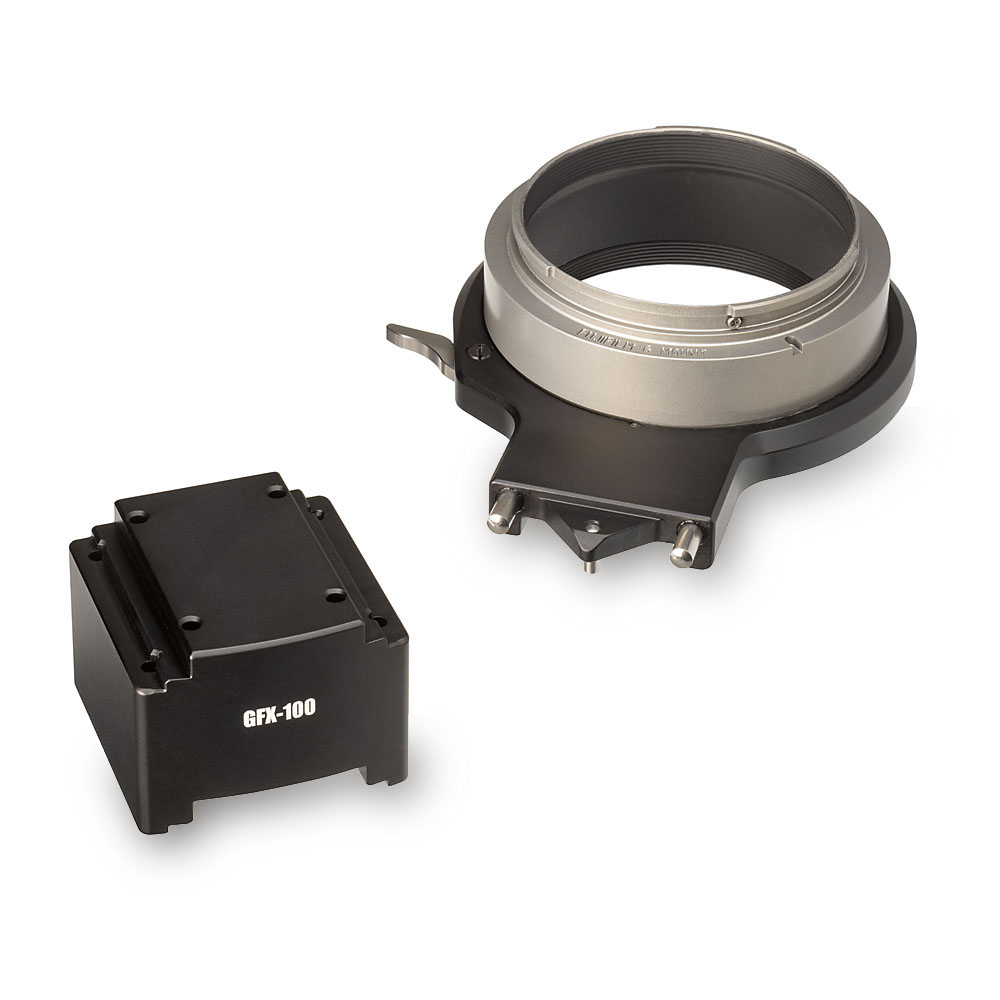

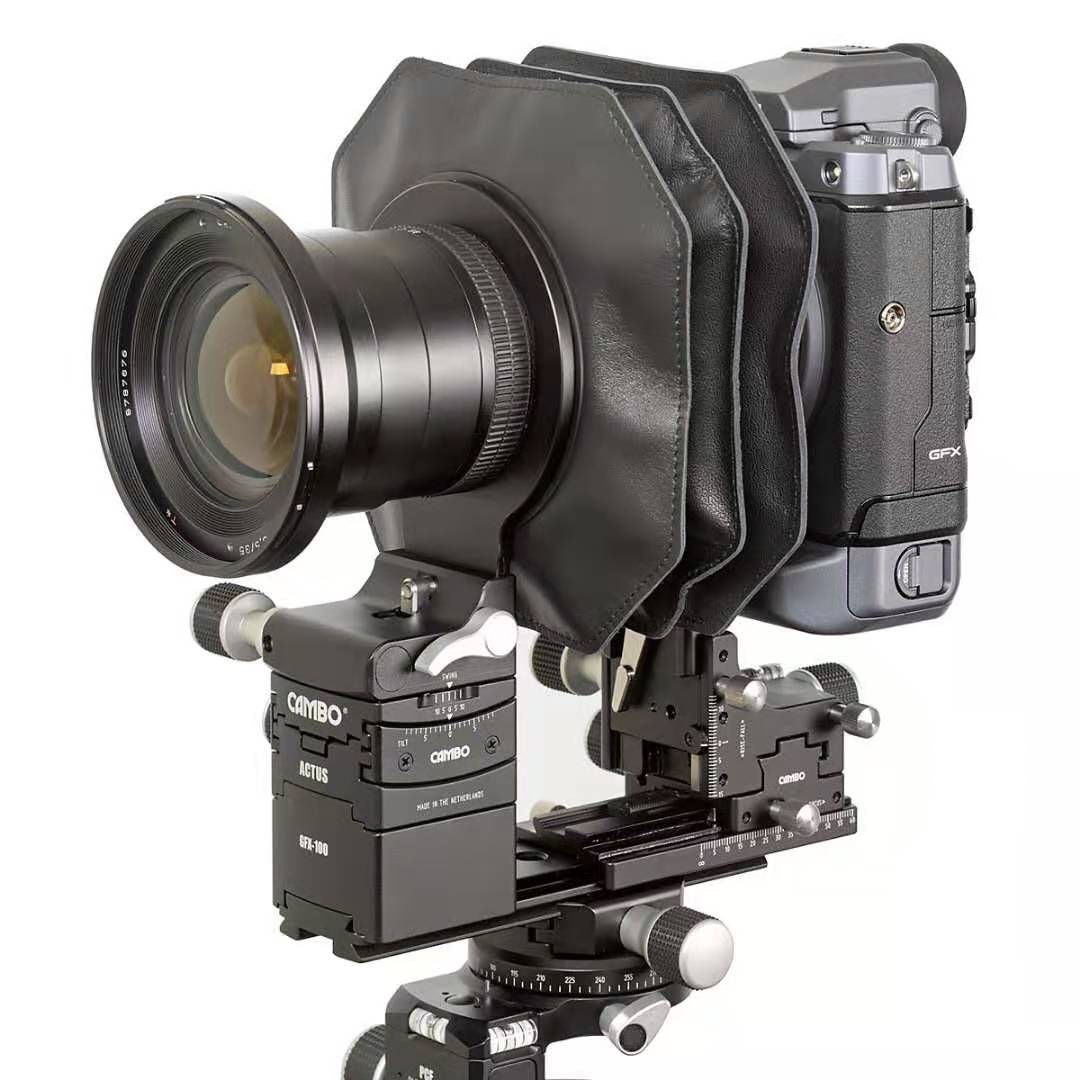

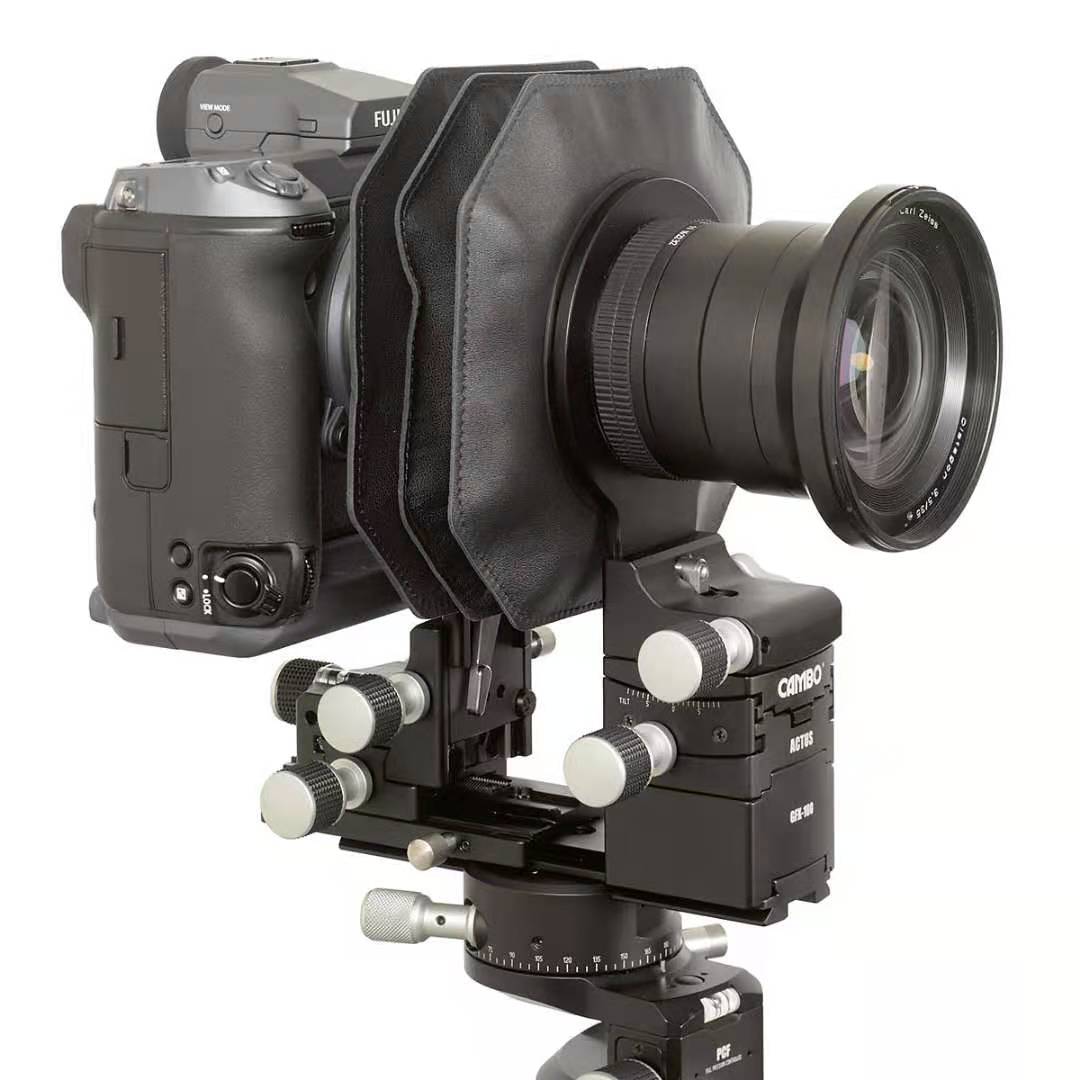

This AC-795 Bayonet Holder Kit is an optional accessory for the ACTUS-G series and allows the mounting of a FUJIFILM GFX-100 mirrorless camera body to the interchangeable top part of the rear standard of the ACTUS-G base.

This adapter includes a built-in rotation between landscape and portrait position.
Due to the increased size of the GFX-100 compared to the GFX-50 body, this interface kit  also includes a raiser block for the front standard in order to match the new height.
  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

The bayonet holder with the Fujifilm GFX-100 bayonet is placed on longer distance from the optics to allow room for the increased body dimensions of the GFX-100 body.

Because of that there may be limitations with some optics. The Actar-60 is known not to focus at infinity anymore with this particular interface kit.

Alternatively the GFX-100 can be mounted to the existing AC-792 kit unchanged, although only in portrait mode without rotation to landscape.
Cambo ACB-795 Specifications


Bayonet :       Fujifilm GFX



Internal Rotation:90 degrees between Landscape and PortraitRaiser block front standard30mm high, included with kit (+ longer screws)
