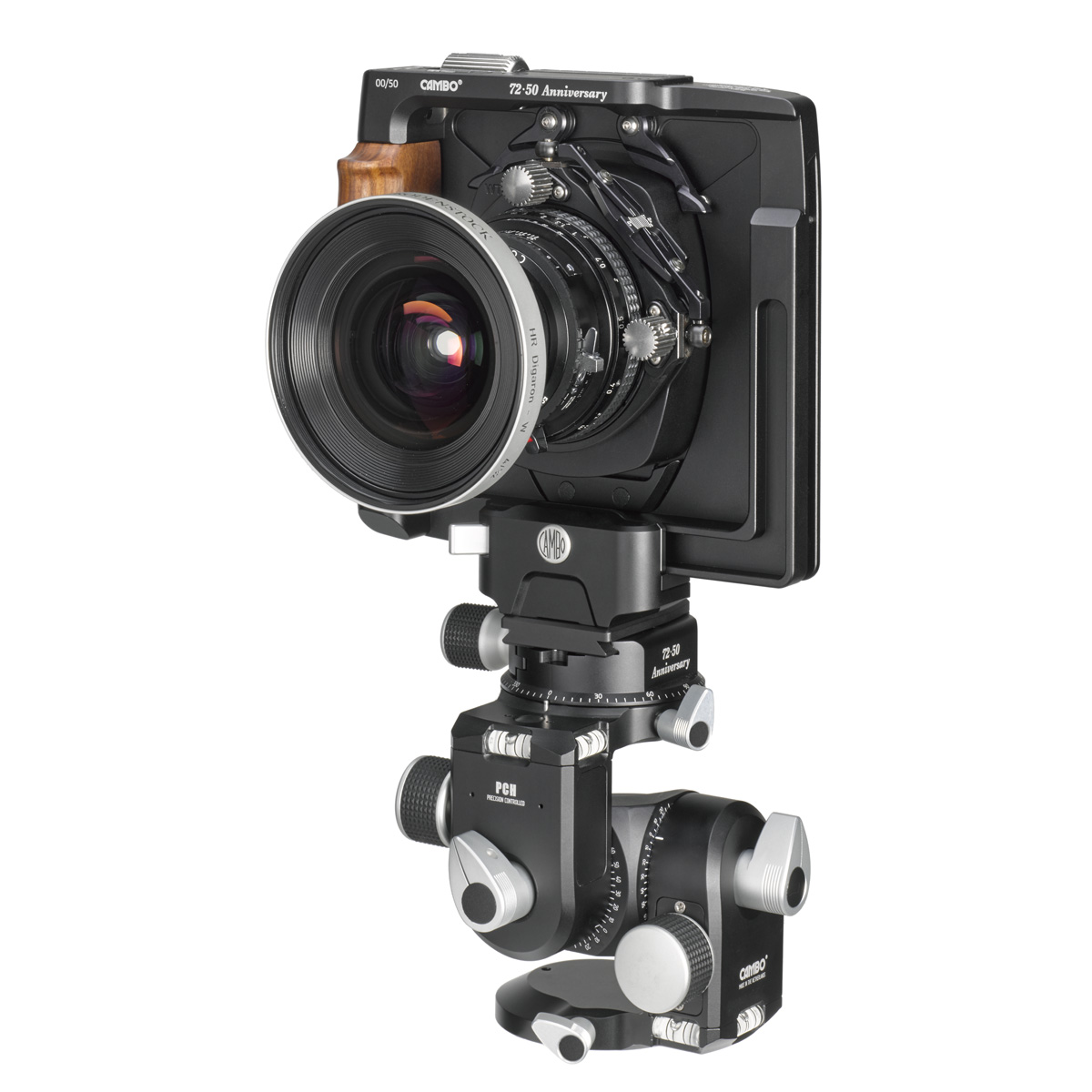

• Size  180 x 160mm (W x H) incl. handgrip and tripod mount

• Lightweight only 0.92 kgs (excl. lens)

• Horizontal shift 40 mm (20 mm left/20 mm right)

• Vertical shift 40 mm (20mm / 20mm)

• Built-in landscape-portrait rotation

• Dovetail mount for PCH (Arca compatible)

• SLW-adapter by choice (-80, -81, -83, -85 or -89)

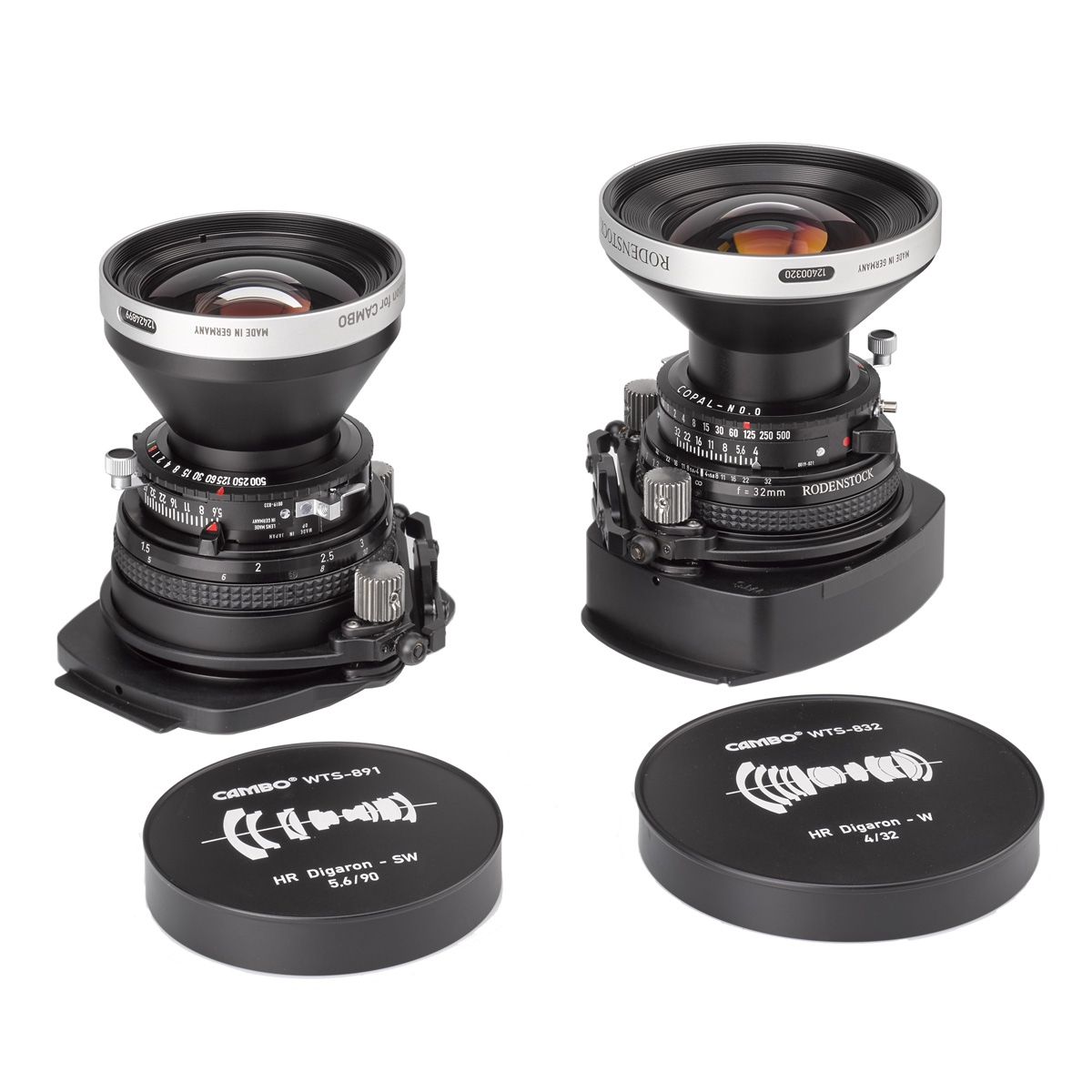

• focal length 32mm, aperture f 4,0

• Shortest focal distance to object: 0,40 mtr

• Image circle of lens at f/8: 90mm

• Optical Movements:

• focal length 90mm, aperture f 5,6

• Shortest focal distance to object: 0,40 mtr

• Image circle of lens at f/11: 120mm

• Optical Movements:

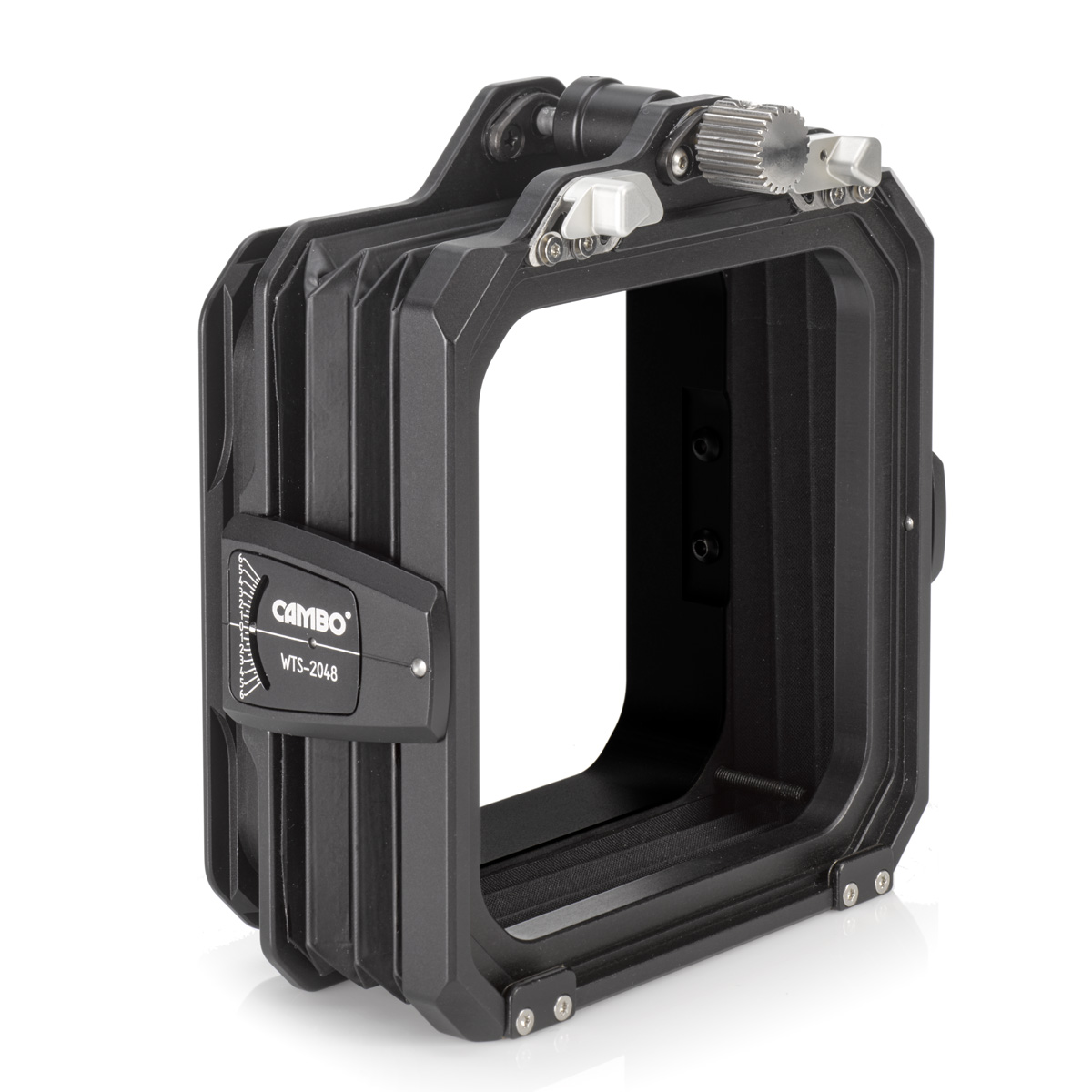

• 48mm rear spacer for WTS-891

• Tilt possible from -6º to +6º degrees

• Swing possible from -6º to +6º degrees when 90º rotated

• Tilt/Swing pivoting point near to focal plane

• 360º manual panning at the top and bottom plate

• Position click indication every 90º at the top and bottom plate

• 140º X-axis tilt (30º backwards 110º forward)

• Separate manual (fast) or geared (fine) movement around the X-axis

• 140º Y-axis pivot (30º backwards 110º forward)

• Separate manual (fast) or geared (fine) movement around the Y-axis

• X-, Y- and Z-axis rotate over the same point

• When X-, Y- and Z-axis locking knobs are open the PCH can move freely like a normal spherical head.

• Adjustable geared friction

• Adjustable manual friction

• Arca compatible QR clamp

• 4 large spirit levels

• Durable stainless steel 3/8’’ and 1/4’’ tripod mounting options.

• height: 130 mm (incl. plate)

• width:  110 mm

• depth:  102 mm

• weight: 1200 gram

• Classic Multiwheel

• Size 55 x 40 x 23

• Aluminium / TSA locks

• Total weight incl.all above 9,1 kg
