QR-XL PLATE

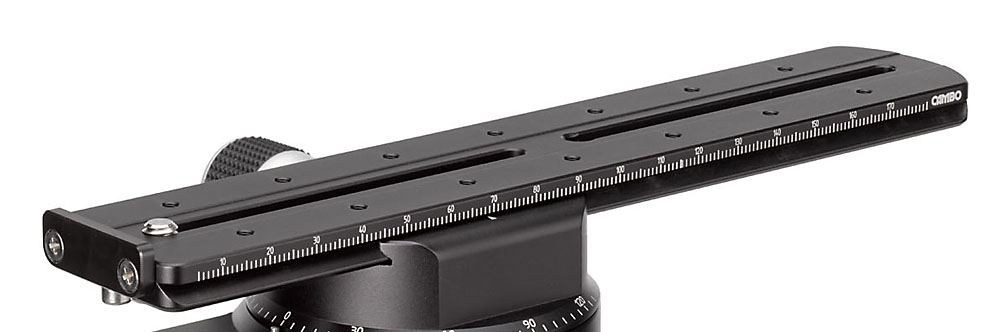

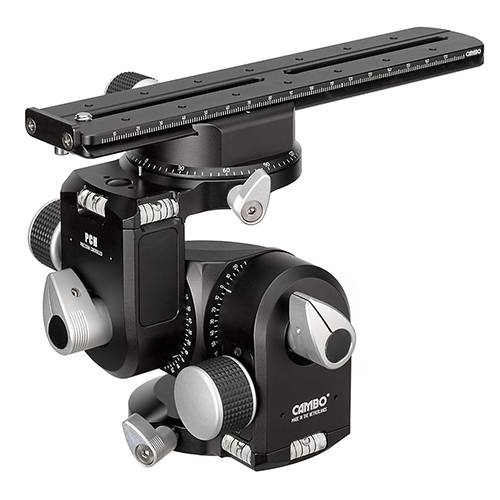

This QR-XL plate is a long plate with 2 slots for custom mounting of cameras to the PCH or CBH-6 heads.


Its use is dual purpose. It allows for setting the center of gravity above the center of the gear head or ball head for perfect balance, especially with longer and larger lenses.


Secondly, this plate allows you to find the ideal (nodal point) center of the lens to be placed above the rotation point for spherical  or round-shot captures.


  • 产品详情

    Product details

  • 技术参数

    Technical details

  • 下载

    Downloads

  • 问答功能

    F&Q

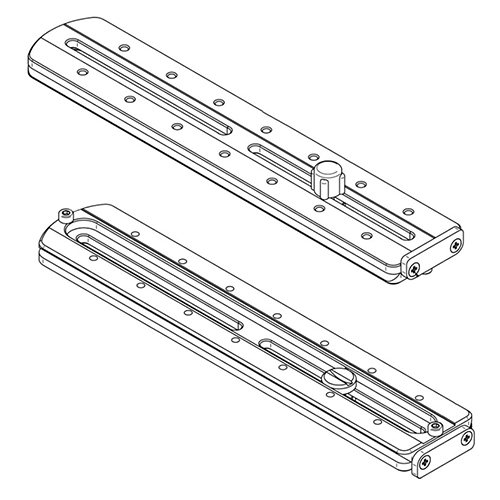

Key Features:


QR dove tail plate with laser engraved mm scale (180mm)

1/4” screw cap

End plate



Front safety stop

1/4" camera screw

Back safety stop


技术规格:

长度:203毫米

重量:134克


Technical Specifications:

length: 203 mm
fitting: Arca compatible
weight: 134 gram
2 slots: each 80mm
repositionable end stop
camera fitting: 1/4"
